The i3 infrasolutions re-openable low voltage cable joint is fully approved by Energy QLD for use on their network as a Rate 2 Lighting Joining Kit.
| Ergon/Energex Stock Codes | Part Number | Description |
|---|---|---|
| 2422160 | i3S-BPFBDR-ROK | Fixed Base Pole Lighting Junction Kit |
| 1010901 | i3S-BP1DR-ROK | 1ph Fixed Base Pole Lighting Fused Junction Kit |
| 2433704 | i3S-BP3DR-ROK | 3ph Slip Base Pole Lighting Fused Junction Kit |
100% designed and manufactured in Queensland the new enclosure has the following advanced features:
Clear Polished Dome
Promotes a safer application with all internal components and electrical connections clearly visible without having to open the enclosure
Non-metallic design
No metal components to promote an electrically safe environment
NATA Tested
Fully tested in Australia by a NATA Laboratory successfully passing
- IP68 Dust Probe and Immersion
- Impact Resistance
- Cable Torsion and Flexure
- Mechanical Operation and re-entry
- Head of Water
- 850° Celsius Fire Hazard
Versatile Cable Ports
Large cable ports to accommodate low voltage cable sizes up to 35mm² conductors
Kitting done in Qld
Fast response and short leads times with ability to amend components and provide kits for special applications
Enclosure and components to suit electrical and lighting applications in bicycle pathways, walking tracks and footpaths, parks and recreational areas.
| i3S-BP3DR-ROK | Three Phase Junction Kit Stock Code 2433704 |

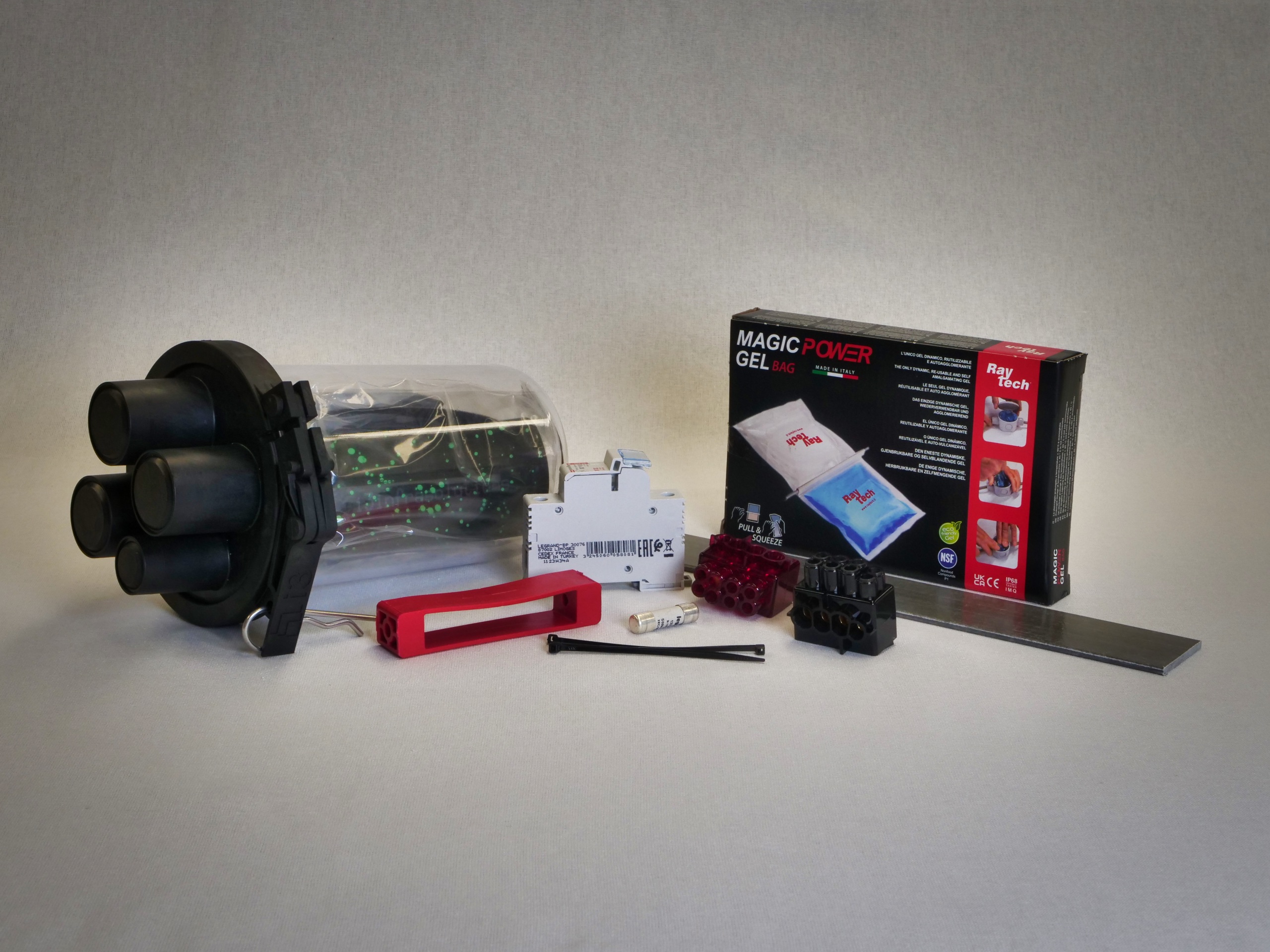

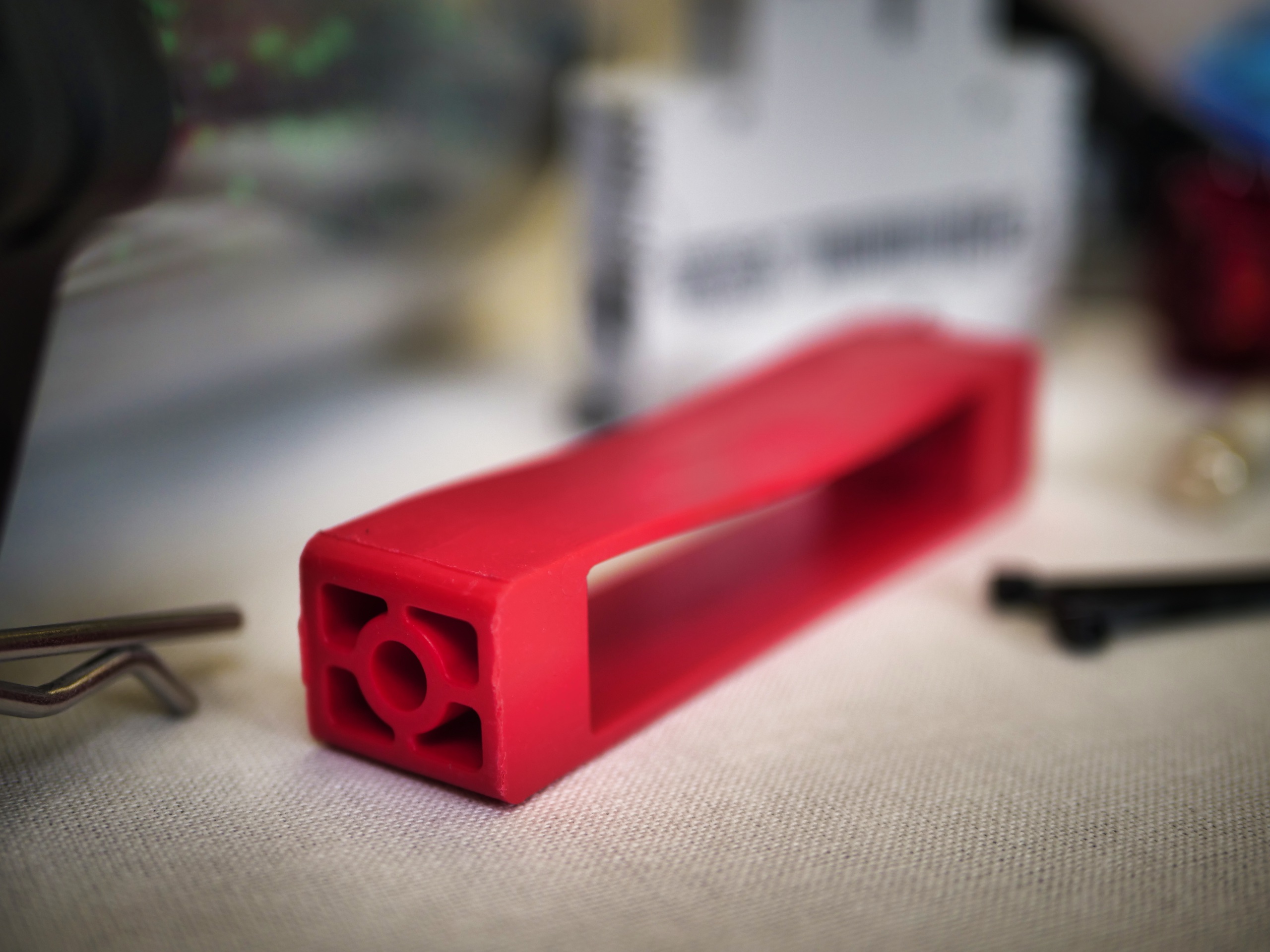

| i3S-BP1DR-ROK | Single Phase Junction Kit Stock Code 1010901 |

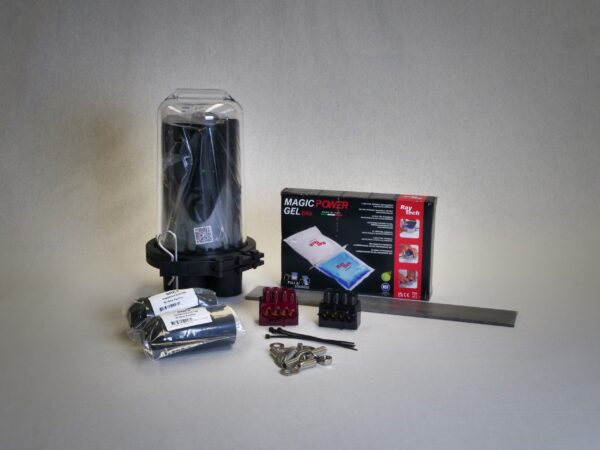

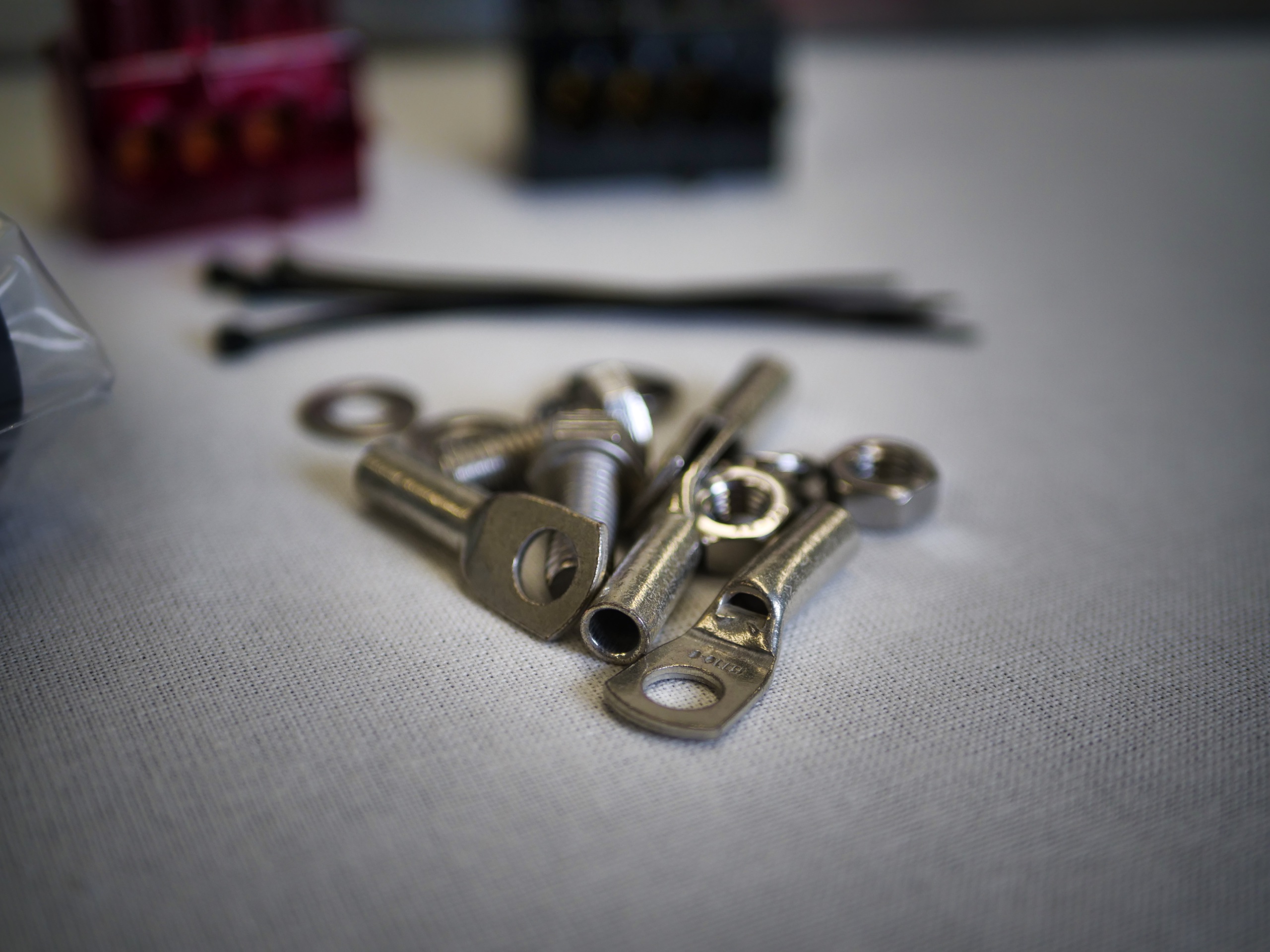

| i3S-BPFBDR-ROK | Fixed Base Pole Junction Kit Stock Code 2422160 |
